Many software devs have already aware of the tool called Traceroute. For those who don’t know, Traceroute is a tool, used to determine the path of your request transfer over the internet.

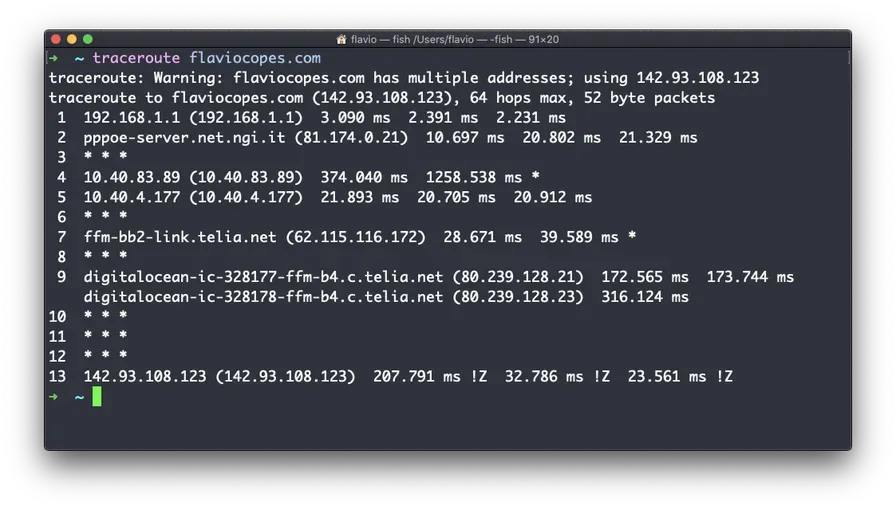

For example, if you run traceroute https://google.com, it shows you the network path that your data packets take to reach google.com from your network.
As many of you may be aware, the OSI (Open Systems Interconnection) model is a framework used to understand network stuff. Since this article focuses more on Traceroute, I will try to cover more about the stuff that is happening on Layer 3 of the OSI model, the Network Layer. You can read more about the OSI Model here.
Layer 3, or the Network Layer, is responsible for transmitting our data in form of packets between devices on a network. Particularly, it handles the transmission of packets from our source IP to the destination IP. It does not care about anything else like port numbers or the actual application-level communication. Its primary job is to route the packets from one device to another across different networks.

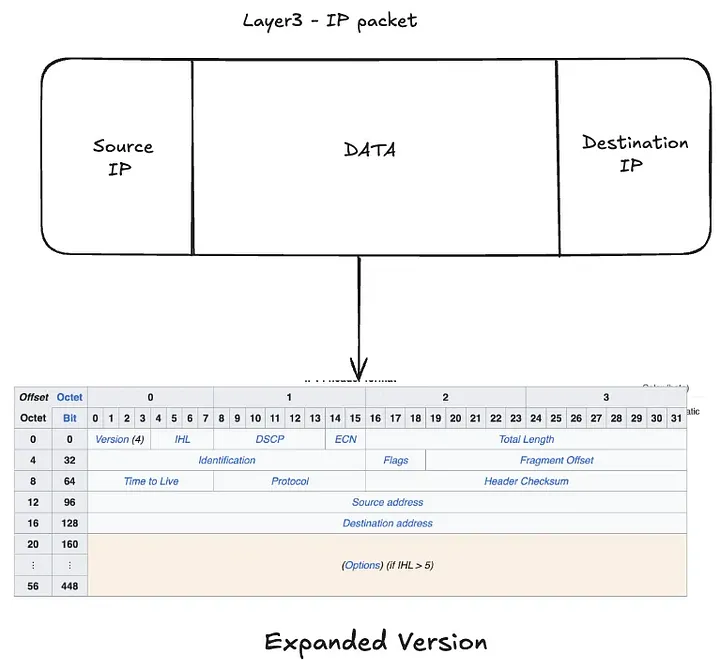

A simplified packet representation of an IP packet (referenced from
Wikipedia).
ICMP (Internet Control Message Protocol) is a protocol that too comes under Layer 3 (the Network Layer). It’s mostly used by tools like ping and traceroute to send information or error messages about the network conditions.
ICMP plays a crucial part for the functioning of Traceroute, as it helps to send the progress of data packets as they move across the internet(in simple terms across different routers/devices).
Now, let’s talk about TTL (Time To Live), which serves as an important concept to understand how Traceroute works. TTL serves many purposes, but one of its primary purpose is to prevent packets from circulating indefinitely inside network devices(routers) if in case they get stuck in a routing loop.
Imagine you’re sending a packet from your home network to a Google server. Along the way, the packet may pass through multiple devices(for eg Router1, Router2, Router3, etc). What if, due to some network failure, the packet starts looping between two routers indefinitely (e.g., Router 1 → Router 3 → Router 2 → Router 3 → Router 2… and so on)?
To prevent this kinda looping scenario, TTL comes handy. TTL ensures that if a packet is stuck in such a loop, it will eventually be discarded after reaching its TTL limit, and the sender will be notified with an error message
Whenever a source router starts to send packet, it starts with an initial TTL value (for this example, let’s say it starts at TTL=3). Each time the packet passes through a router, that router decrements the TTL value by 1. This process continues to travel across routers, whenever this TTL value becomes 0, the router discards the packet and sends an ICMP message to its sender with the error code as “Time Exceeded”.
This mechanism ensures that packets that can’t find their destination do not remain on the network forever.

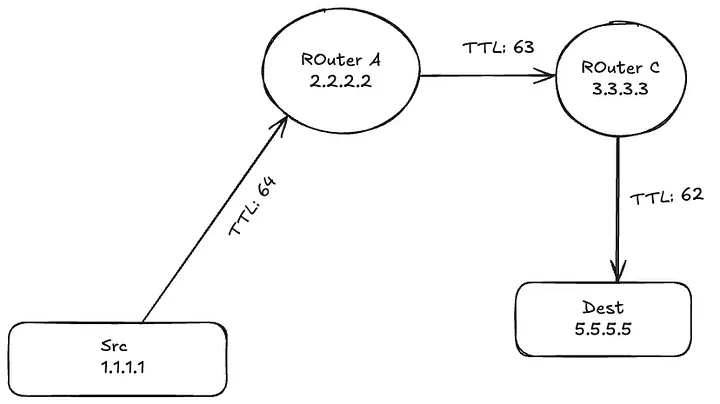

From the above image, Since the packets can able to reach from
src(1.1.1.1) to dest(5.5.5.5), discarding of packet is not needed.
Traceroute basically uses this TTL value to map the path across the src and dest networks.
Traceroute begins by sending packets with a low TTL value — initially 1 from the src network. The first router in the path receives the packet and decrements the TTL by 1, since now the TTL becomes 0, the router discards the packet and sends an ICMP message “Time Exceeded” back to the sender.
Traceroute then again increments the TTL and sends another packet with TTL=2. This time, the first router allows the packet to pass by decrementing the TTL value with 1, and the second router receives it. The second router again decrements the TTL value by 1, since now the TTL becomes 0, the router discards the packet and sends an ICMP message “Time Exceeded” back to its sender.
This process repeats with incrementing TTL values until the packet reaches the destination. At that point, the destination sends an ICMP “Destination Unreachable” or “Echo Reply” message back to the sender, signaling that the trace is complete. In this way, Traceroute can determine the path (i.e., the sequence of routers) taken by the packet to reach the destination.

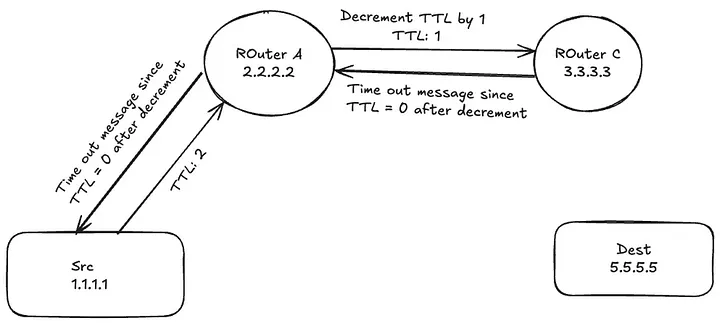

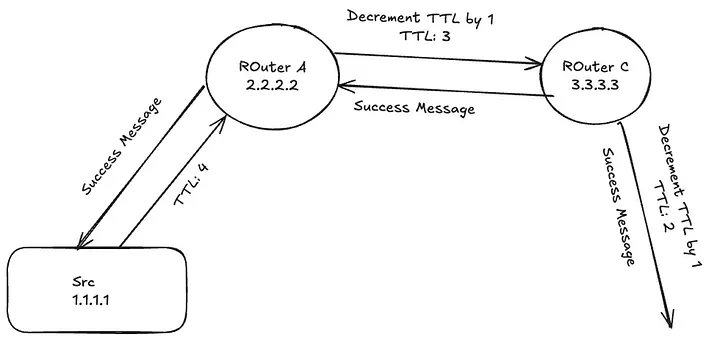

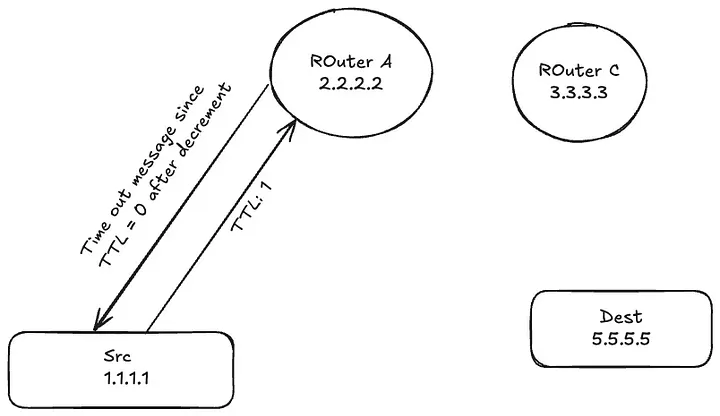

Following 3 images explain how traceroute can able to fetch the path by each time incrementing the value of TTL by 1, untill it reaches the destination path.
Yep, this is how traceroute use TTL effectively in order to determine the network path.
While exploring this Traceroute working, I had a question with myself, What happens when the network path changes? since, networks are dynamic, and routing paths can change for many reasons like load balancing, node failure, or changes in routing rules.
In these cases, Traceroute may not always gives the most accurate or up-to-date network path. It's important to remember that traceroute gives the path at the time that it runs, and this path could change depending on the network's current state. It's a useful tool for troubleshooting, but it may not be always 100% reliable in our dynamic network environment.
